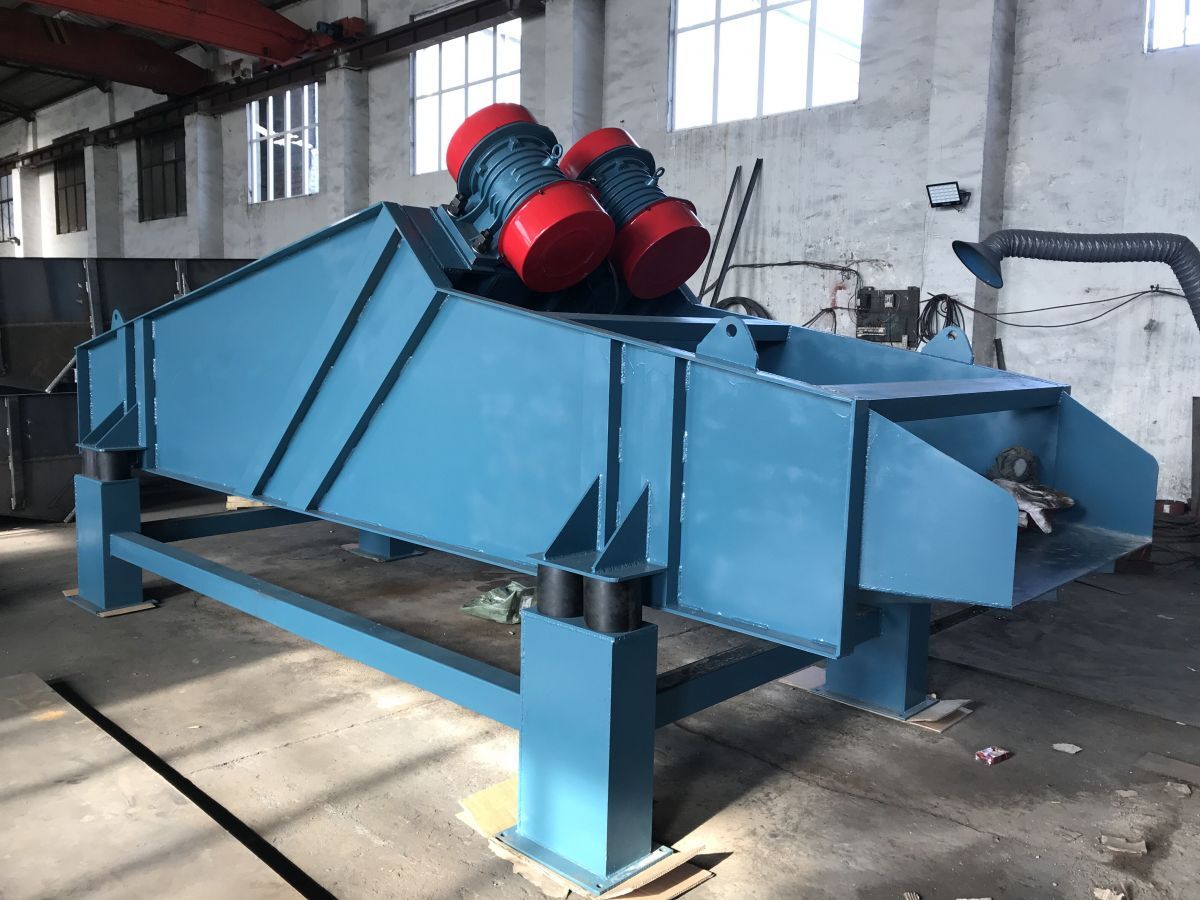

高效重型振動篩是一種新型高效的通用篩分設備，其篩箱運動軌跡近似為直線。該系列篩機結構簡單，篩分能力大且能耗少、維修簡便，廣泛應用于礦山、煤炭、電力、冶金、建材、耐火等各行各業對較大塊狀物料及中、小顆粒狀物料的分級作業。
該系列振動篩的動力裝置有振動電機直接驅動和普通電機通過聯軸器帶動激振器間接驅動兩種形式，可滿足不同環境需要；篩面有金屬編織網、棒條、鑄造、焊接、沖孔等多種形式，篩面既有單層結構也可多層布置，可滿足不同篩分作業要求。
高效直線振動篩選用提示
1、高效重型振動篩，計有11個定型規格并分別有敞開型和封閉型兩種結構形式，適用不同作業環境需求，選用時請確定電壓制式及有無防爆要求；
2、設備安裝方式有支座式和吊掛式及二者搭配式等多種形式，選型時，請務必慎重考
直線振動篩常用型號技術參數表:
| 型號 | 篩面尺寸 | 篩面層數 | 網孔尺寸 | 處理量 | 振次 | 雙振幅 | 電機功率 | 振動方向角 | 外形尺寸（長×寬×高） |
| ZXS520 |
1 2 3 1 2 3 4 5 6 |
2-200 | 0.05-5 | 960 | 6-7 | 2×0.4 | 45-60 | 2140×808×848 | |
| 2ZXS520 | 500×2000 | 0.05-5 | 960 | 6-7 | 2×0.4 | 45-60 | 2199×808×878 | ||
| 3ZXS520 | 500×2500 | 0.03-5 | 1450 | 4-6 | 2×0.4 | 45 | 2256×808×938 | ||
| ZXS525 | 0.06-8 | 960 | 5-7 | 2×0.4 | 45-60 | 2642×808×848 | |||
| 2ZXS525 | 0.06-8 | 1450 | 4-6 | 2×0.4 | 45 | 2699×808×878 | |||
| 3ZXS525 | 0.06-8 | 960 | 6-8 | 2×0.75 | 45-60 | 2750×808×938 | |||
| 4ZXS525 | 0.1-15 | 1450 | 5-7 | 2×0.4 | 45 | 2813×808×1000 | |||
| 5ZXS525 | 0.08-15 | 1450 | 5-7 | 2×0.4 | 45 | 2883×808×1060 | |||
| 6ZXS525 | 0.07-15 | 960 | 6-8 | 2×0.75 | 45-60 | 2953×808×1120 | |||
| ZXS1020 | 1000×2000 | 1 | 0.12-20 | 960 | 6-8 | 2×0.75 | 45-60 | 2152×1320×900 | |
| 2ZXS1020 | 2 | 0.11-20 | 960 | 5-7 | 2×0.75 | 45-60 | 2219×1320×960 | ||
| 3ZXS1020 | 1000×2000 | 3 | 2-200 | 0.10-2 | 960 | 5-7 | 2×0.75 | 45-60 | 2286×1320×1030 |
| 4ZXS1020 | 4 | 0.07-15 | 960 | 4-8 | 2×0.75 | 45-60 | 2353×1320×1100 | ||
| 5ZXS1020 | 5 | 0.07-15 | 960 | 4-8 | 2×1.5 | 45-60 | 2420×1320×1160 | ||
| 6ZXS1020 | 6 | 0.07-15 | 960 | 4-8 | 2×1.5 | 45-60 | 2487×1320×1220 | ||
| ZXS1025 | 1000×2500 | 1 | 0.1-15 | 1450 | 5-7 | 2×0.4 | 45 | 2203×1320×900 | |
| 2ZXS1025 | 2 | 0.08-15 | 1450 | 5-7 | 2×0.4 | 45 | 2269×1320×960 | ||
| 3ZXS1025 | 3 | 0.07-15 | 960 | 6-8 | 2×0.75 | 45-60 | 2336×1320×1030 | ||
|
ZXS830 2ZXS830 3ZXS830 |
800×3000 |
1 2 3 |
0.1-20 | 960 | 6-8 | 2×0.75 | 45-60 | 3080×1098×1120 | |
| 0.1-20 | 960 | 6-8 | 2×0.75 | 45-60 | 3140×1098×1180 | ||||
| 0.1-20 | 960 | 6-8 | 2×1.5 | 45-60 | 3200×1098×1240 | ||||
| ZXS1030 | 1000×3000 | 1 | 0.1-20 | 960 | 6-8 | 2×0.75 | 45-60 | 3152×1340×1120 | |
| 2ZXS1030 | 2 | 0.1-20 | 960 | 6-8 | 2×1.5 | 45-60 | 3219×1340×1120 | ||
| 3ZXS1030 | 3 | 0.1-20 | 960 | 6-8 | 2×1.5 | 45-60 | 3286×1340×1120 | ||
| ZXS1224 | 1200×2400 | 1 | 0.1-23 | 960 | 6-8 | 2×0.75 | 45-60 | 2480×1520×1100 | |
| 2ZXS1224 | 2 | 0.1-23 | 960 | 6-8 | 2×0.75 | 45-60 | 2540×1520×1160 | ||
| 3ZXS1224 | 3 | 0.1-23 | 960 | 6-8 | 2×1.5 | 45-60 | 2600×1520×1220 |
ZXS系列直線振動篩常用型號規格尺寸表:
| L | L1 | L2 | L3 | L4 | L5 | L6 | B | B1 | B2 | B3 | H | H1 | C | ф | фK | |
| ZXS520 | 2075 | 200 | 1300 | 1450 | 1550 | 130 | 340 | 556 | 400 | 706 | 806 | 990 | 400 | 60 | 60 | 11 |
| 2ZXS520 | 2135 | 200 | 1330 | 1500 | 1600 | 130 | 340 | 556 | 400 | 706 | 806 | 1050 | 400 | 120 | 60 | 11 |
| 3ZXS520 | 2195 | 200 | 1400 | 1500 | 1600 | 130 | 340 | 556 | 400 | 706 | 806 | 1110 | 400 | 180 | 60 | 11 |
| ZXS525 | 2575 | 220 | 1580 | 1700 | 1800 | 150 | 450 | 558 | 400 | 706 | 806 | 990 | 400 | 60 | 60 | 11 |
| 2ZXS525 | 2635 | 220 | 1620 | 1750 | 1850 | 150 | 450 | 558 | 400 | 706 | 806 | 1050 | 400 | 120 | 60 | 11 |
| 3ZXS525 | 2695 | 220 | 1670 | 1750 | 1850 | 150 | 450 | 558 | 400 | 706 | 806 | 1110 | 400 | 180 | 60 | 11 |
| 4ZXS525 | 2755 | 220 | 1650 | 1800 | 1900 | 170 | 480 | 558 | 400 | 706 | 806 | 1170 | 400 | 240 | 60 | 15 |
| 5ZXS525 | 2815 | 220 | 1630 | 1800 | 1900 | 170 | 480 | 558 | 400 | 706 | 806 | 1230 | 400 | 300 | 60 | 15 |
| 6ZXS525 | 2875 | 220 | 1610 | 1800 | 1900 | 170 | 480 | 558 | 400 | 706 | 806 | 1290 | 400 | 360 | 60 | 15 |
| ZXS1020 | 2075 | 200 | 1320 | 1450 | 1550 | 150 | 340 | 1018 | 800 | 1178 | 1278 | 1120 | 368 | 60 | 60 | 15 |
| 2ZXS1020 | 2135 | 200 | 1400 | 1500 | 1600 | 150 | 340 | 1018 | 800 | 1178 | 1278 | 1180 | 380 | 120 | 60 | 15 |
| 3ZXS1020 | 2195 | 200 | 1400 | 1500 | 1600 | 150 | 340 | 1018 | 800 | 1178 | 1278 | 1240 | 380 | 180 | 60 | 15 |
| 4ZXS1020 | 2255 | 250 | 1500 | 1600 | 1700 | 190 | 400 | 1018 | 800 | 1178 | 1278 | 1300 | 400 | 240 | 60 | 17 |
| 5ZXS1020 | 2315 | 250 | 1500 | 1600 | 1700 | 190 | 400 | 1018 | 800 | 1178 | 1278 | 1360 | 400 | 300 | 60 | 17 |
| 6ZXS1020 | 2375 | 250 | 1500 | 1600 | 1700 | 190 | 400 | 1018 | 800 | 1178 | 1278 | 1420 | 400 | 360 | 60 | 17 |
| ZXS1025 | 2575 | 220 | 1600 | 1700 | 1800 | 170 | 450 | 1020 | 800 | 1178 | 1278 | 1120 | 380 | 60 | 60 | 13 |
| 2ZXS1025 | 2635 | 220 | 1650 | 1750 | 1850 | 170 | 450 | 1020 | 800 | 1178 | 1278 | 1180 | 380 | 120 | 60 | 13 |
| 3ZXS1025 | 2695 | 220 | 1650 | 1750 | 1850 | 170 | 450 | 1020 | 800 | 1178 | 1278 | 120 | 380 | 180 | 60 | 13 |
| ZXS830 | 3080 | 250 | 1900 | 2000 | 2100 | 190 | 500 | 818 | 600 | 978 | 1098 | 1120 | 430 | 60 | 60 | 17 |
| 2ZXS830 | 3140 | 250 | 1900 | 2000 | 2100 | 190 | 500 | 818 | 600 | 978 | 1098 | 1180 | 430 | 120 | 60 | 17 |
| 3ZXS830 | 3200 | 250 | 2000 | 2100 | 2200 | 190 | 580 | 818 | 600 | 978 | 1098 | 1240 | 430 | 180 | 60 | 17 |
| ZXS1030 | 3080 | 280 | 1900 | 2000 | 2100 | 210 | 500 | 1020 | 800 | 1178 | 1298 | 1120 | 450 | 60 | 60 | 17 |
| 2ZXS1030 | 3140 | 280 | 1900 | 2000 | 2100 | 210 | 500 | 1020 | 800 | 1178 | 1298 | 1180 | 450 | 120 | 60 | 17 |
| 3ZXS1030 | 3200 | 280 | 2000 | 2100 | 2200 | 210 | 580 | 1020 | 800 | 1178 | 1298 | 1240 | 450 | 180 | 60 | 17 |
| ZXS1224 | 2480 | 220 | 1550 | 1650 | 1750 | 170 | 450 | 1220 | 950 | 1378 | 1498 | 1150 | 400 | 60 | 60 | 17 |
| 2ZXS1224 | 2540 | 220 | 1550 | 1650 | 1750 | 170 | 450 | 1220 | 950 | 1378 | 1498 | 1210 | 400 | 120 | 60 | 17 |
| 3ZXS1224 | 2600 | 220 | 1600 | 1700 | 1800 | 170 | 450 | 1220 | 950 | 1378 | 1498 | 1270 | 400 | 180 | 60 | 17 |
